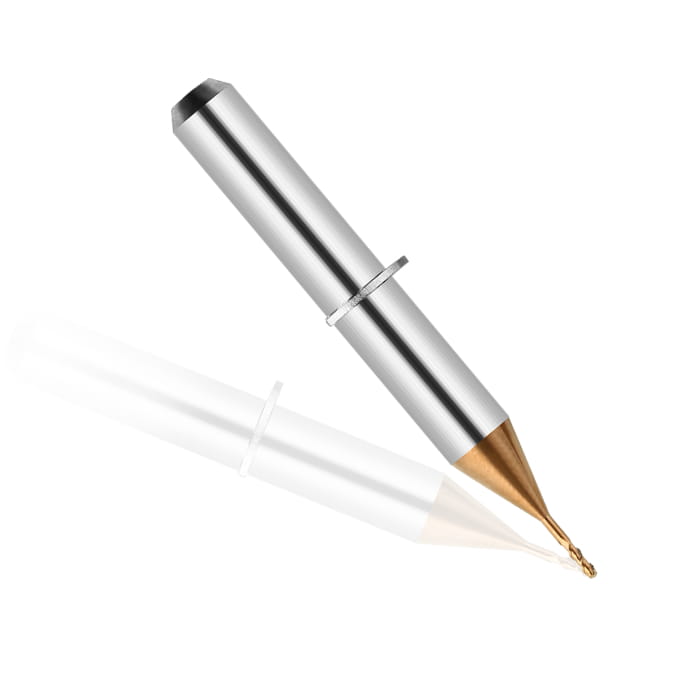

Cradle Compatible Metal Milling Burs Shank 6mm Φ1.0mm Flat Type For B51 / B52 Milling Machine

This Cradle-compatible 1.0mm flat end bur with 6mm shank is purpose-built for flat-surface machining, margin line trimming, and path-of-insertion geometry on prosthetic frameworks. The flat end geometry creates crisp edges and uniform planar surfaces that seat accurately against abutments and prepared margins. Engineered for CrCo and titanium alloy dental frameworks, this bur features TiSiN coating that withstands the high cutting temperatures and abrasive forces generated during metal milling. The 1.0mm diameter provides an ideal balance of detail capability and tool rigidity, well-suited for connector areas, occlusal detail passes, and standard finish milling. Manufactured to tight tolerances for the Cradle B51 and B52 5-axis milling platforms, ensuring vibration-free tool holding in the 6mm collet system.

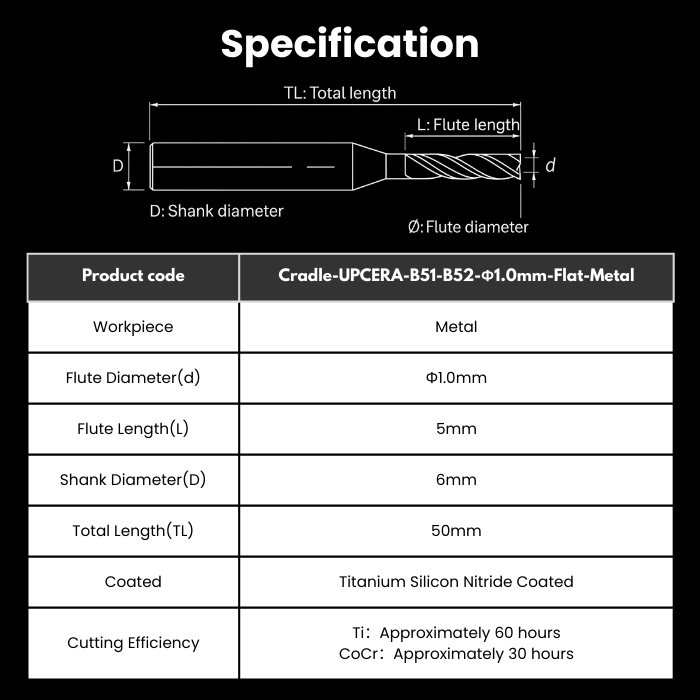

• Product Specifications:Cutting Diameter: 1.0mm, Effective Length: 5mm, Overall Length: 50mm, Shank Diameter: 6mm | Engineered for fine-detail dental CAD/CAM milling with excellent control and dimensional accuracy.
• Compatibility:Compatible with Cradle/UPCERA CAD/CAM milling units, this bur ensures secure mounting and vibration-free performance, supporting intricate contouring and metal frameworks with confidence.
• Superior TiSiN Coating:The Titanium Silicon Nitride (TiSiN) coating delivers outstanding thermal stability, oxidation resistance, and surface hardness—enabling reliable performance under high-speed, high-temperature cutting environments.
• Wide Range of Applications:With superior wear protection and friction reduction, the TiSiN coating significantly prolongs tool life, reduces edge chipping, and enhances surface finish—ideal for continuous, long-cycle production tasks.
• Outstanding Durability & Performance:Built for stability and tight restorative tolerance, this tool maintains cutting accuracy even in prolonged use, offering professionals consistent results with reduced downtime and tool changes.

Coating: Titanium Silicon Nitride Coated (TiSiN)

For professional dental laboratory use only.
