3D Plus Multilayer Zirconia Block for 98mm Open System
| Color | A1,A2,A3,A3.5,A4,B1,B2,B3,B4,C1,C2,C3,C4,D2,D3,D4,OM1,OM2,OM3 |
| Flexural Strength | 700-1050MPa(Av.) |
| Material Adaptation System | 98mm |
| Sintered Density | 6.07±0.03 g/cm³ |
| Sintering Temperature | 1500 °C |
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm 20mm, 22mm, 25mm |
| Translucency | 57%-43% |
| Vickers Hardness (HV10) | 1200 HV |
- Product Code: 3D-Plus-Multilayer-Zirconia-98mm-Open
- Availability: In Stock
-
$75.00
Available Options
Universal 6-Layer Gradient Zirconia Disc for Open CAD/CAM Systems
3D Plus Multilayer Zirconia Block for 98mm Open CAD/CAM Systems
The 3D Plus Multilayer Zirconia Block in the universal 98mm open system format is compatible with the widest range of dental CAD/CAM milling machines on the market. From Roland DWX series to VHF, IMES ICORE, and dozens of other brands, this premium zirconia disc delivers consistent, high-quality results across all major open-system platforms.
Outstanding Mechanical Performance

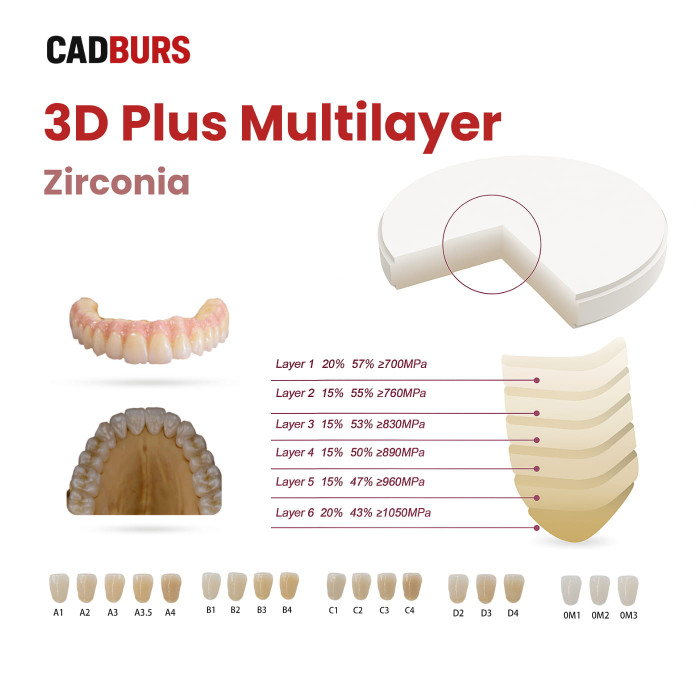

With a flexural strength of 700-1050 MPa and translucency ranging from 43% to 57%, the 3D Plus zirconia achieves the ideal combination of strength and aesthetics. The advanced 6-layer gradient technology produces smooth color and opacity transitions from cervical to incisal, eliminating the need for manual layering while delivering naturally beautiful restorations.
Complete Shade System
Choose from a comprehensive range of 30 shades:
- 11 Natural Shades — realistic, organic tooth color reproduction
- 16 Classic VITA Shades — full A1-D4 shade guide compatibility
- 3 Bleached Shades — for brighter, whiter restorations
Wide Machine Compatibility
The 98mm open system format ensures compatibility with numerous CAD/CAM milling machines:
- Roland DWX-50, DWX-51D, DWX-52D, DWX-52DC
- VHF K5, K5+, S1, S2, Z4
- IMES ICORE CORiTEC 250i, 350i, 450i
- UP3D, XTCERA, Dentium, and many more

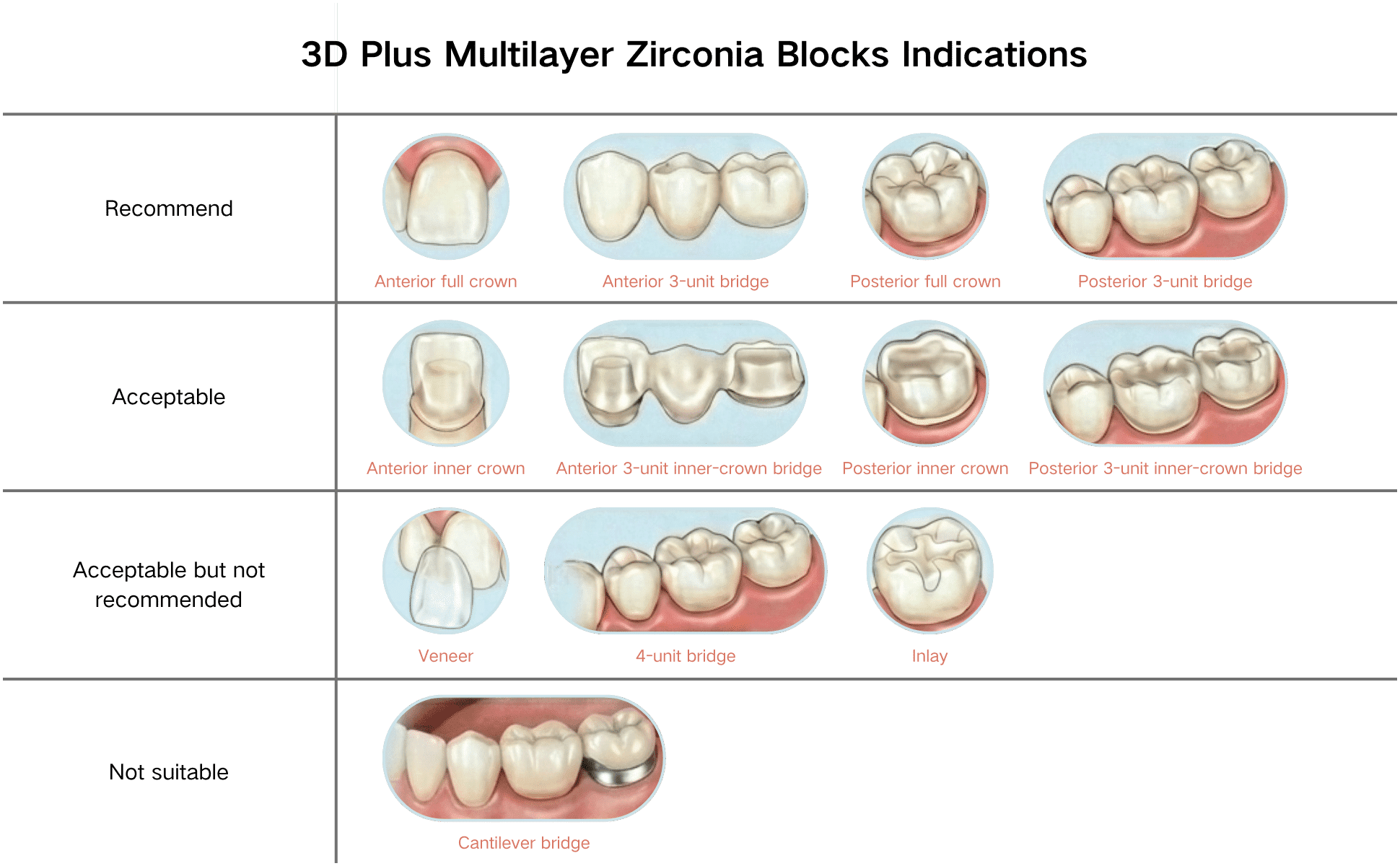

Versatile Clinical Applications
- Full-contour anterior and posterior crowns
- Multi-unit bridges up to 14 units
- Implant-supported restorations
- Inlays, onlays, and veneers
- Full-arch prostheses
Note: Not recommended for partial arch restorations.
Technical Specifications
| Parameter | Value |
| Material | Yttria-Stabilized Zirconia (3Y-TZP / 5Y-TZP) |
| Flexural Strength | 700-1050 MPa |
| Light Transmittance | 43% - 57% |
| Layers | 6 Gradient Layers |
| Disc Diameter | 98mm (Open System) |
| Available Thickness | 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm |

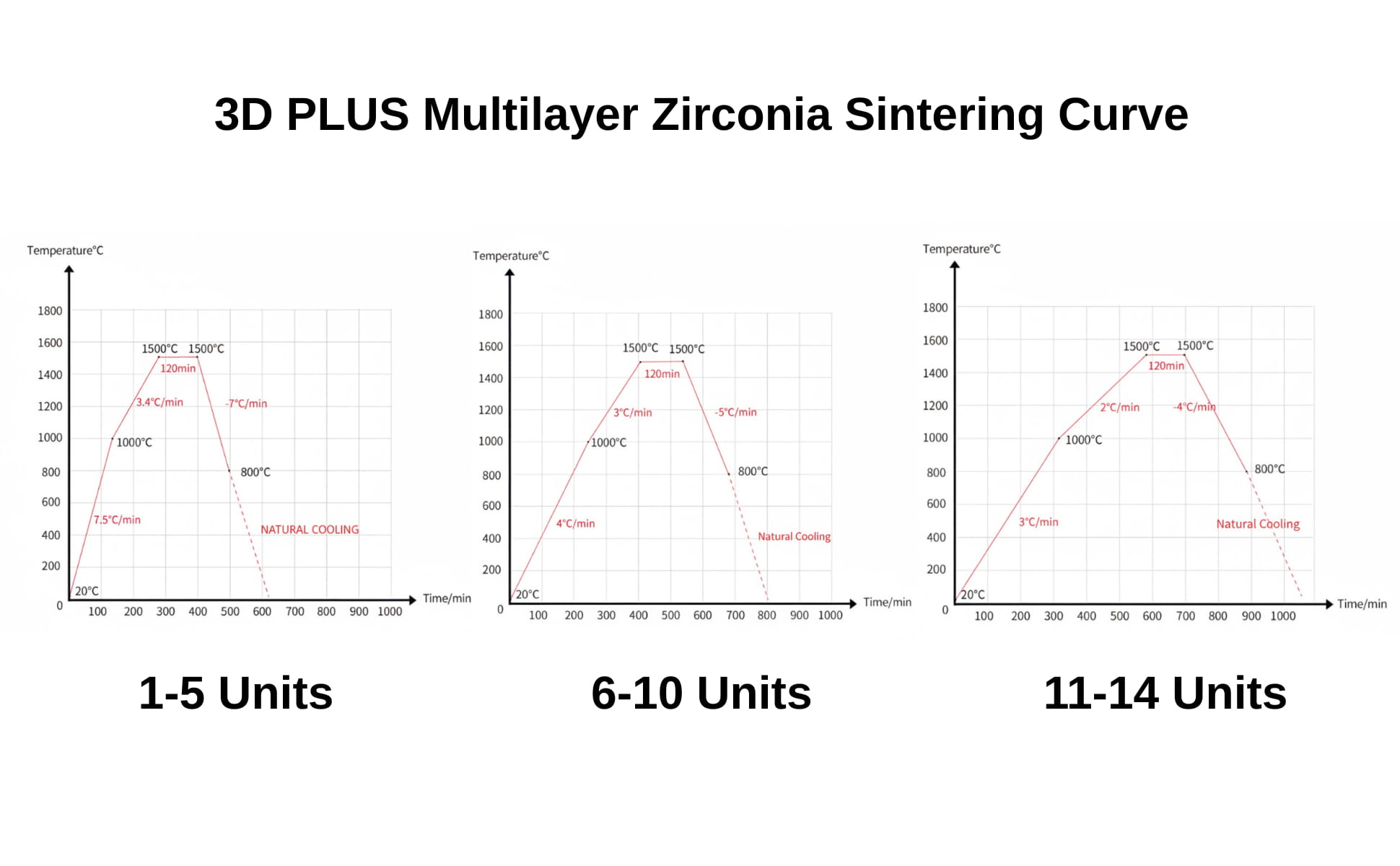

| Sintering Temp | 1450°C - 1550°C |
Why CADBURS?
- Factory-Direct Pricing — Premium quality at competitive prices
- Universal Compatibility — Fits all major 98mm open-system machines
- Global Shipping — Fast delivery with customs support
- ISO 13485 Certified — Rigorous quality control
Frequently Asked Questions
What milling machines are compatible with this 98mm zirconia block?
This 98mm open system zirconia block fits virtually all CAD/CAM milling machines that use the standard 98mm disc format, including Roland DWX series, VHF, IMES ICORE, UP3D, XTCERA, Dentium, and many others. Check your machine specifications for 98mm disc compatibility.
What thicknesses are available?
The 3D Plus 98mm zirconia block is available in 8 thicknesses: 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, and 25mm. Select the thickness that best suits your restoration requirements.
Is this zirconia suitable for both anterior and posterior restorations?
Yes, the 3D Plus features high translucency (up to 57%) for beautiful anterior aesthetics and sufficient strength (700-1050 MPa) for durable posterior restorations. The 6-layer gradient ensures natural-looking results in all positions.
How quickly can you ship internationally?
Orders are typically dispatched within 1-2 business days. International delivery via DHL/FedEx/UPS takes 5-7 business days. We provide customs clearance assistance for hassle-free importing.
For professional dental laboratory use only.

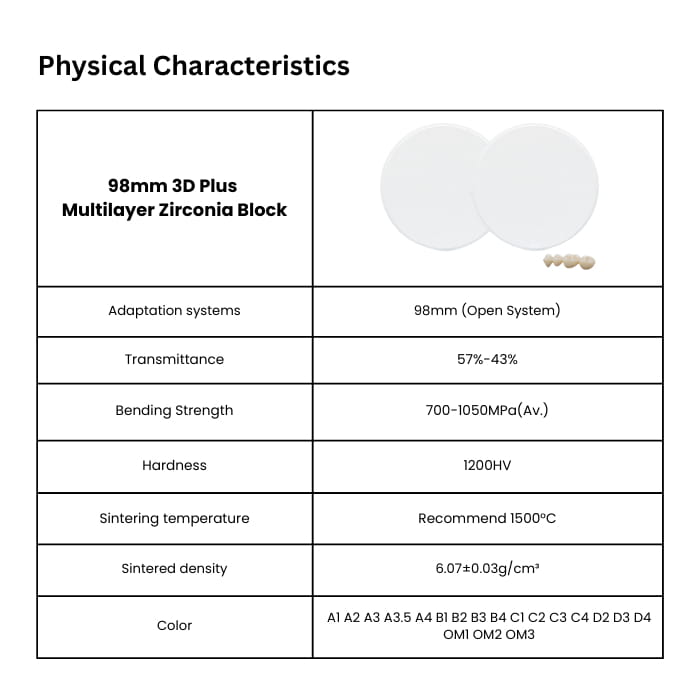

| Specifications | |
| Color | A1,A2,A3,A3.5,A4,B1,B2,B3,B4,C1,C2,C3,C4,D2,D3,D4,OM1,OM2,OM3 |
| Flexural Strength | 700-1050MPa(Av.) |
| Material Adaptation System | 98mm |
| Sintered Density | 6.07±0.03 g/cm³ |
| Sintering Temperature | 1500 °C |
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm 20mm, 22mm, 25mm |
| Translucency | 57%-43% |
| Vickers Hardness (HV10) | 1200 HV |
