3D Plus Multilayer Zirconia Block for 89mm Amann Girrbach System
| Color | A1,A2,A3,A3.5,A4,B1,B2,B3,B4,C1,C2,C3,C4,D2,D3,D4,OM1,OM2,OM3 |
| Flexural Strength | 700-1050MPa(Av.) |
| Material Adaptation System | 92x75mm |
| Sintered Density | 6.07±0.03 g/cm³ |
| Sintering Temperature | 1500 °C |
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm 20mm, 22mm, 25mm |
| Translucency | 57%-43% |
| Vickers Hardness (HV10) | 1200 HV |
- Product Code: 3D-Plus-Multilayer-Zirconia-89mm-Amann-Girrbach
- Availability: In Stock
-
$75.00
Available Options

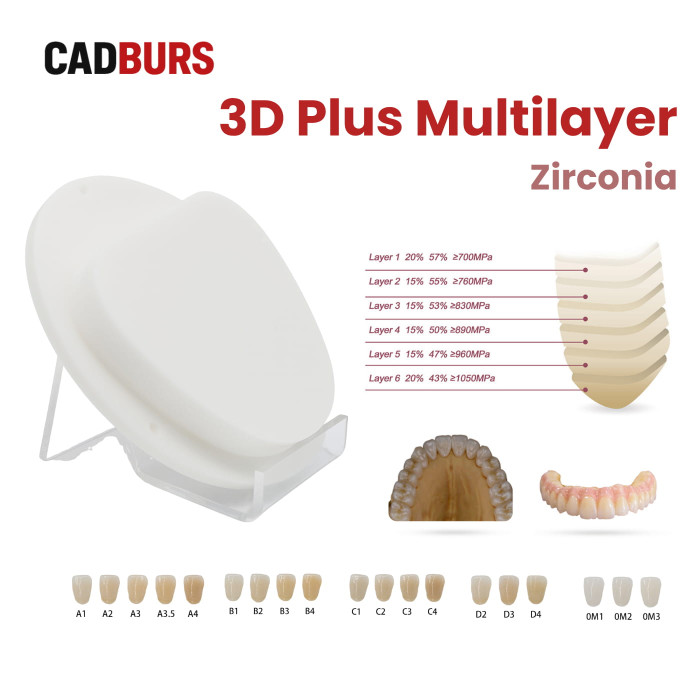

Premium 6-Layer Gradient Zirconia with Superior Translucency
3D Plus Multilayer Zirconia Block for 89mm Amann Girrbach Ceramill Systems
The 3D Plus Multilayer Zirconia Block is a premium-grade dental milling material specifically designed for the 89mm Amann Girrbach Ceramill milling systems, including the Ceramill Matik, Ceramill Matron, and Ceramill Motion 3. Engineered with cutting-edge 6-layer gradient technology, this zirconia block delivers an exceptional combination of strength and natural aesthetics for a wide range of dental restorations.
Superior Strength and Aesthetics
With a flexural strength of 700-1050 MPa and light transmittance ranging from 43% to 57%, the 3D Plus zirconia block achieves the perfect balance between structural durability and lifelike translucency. The 6-layer gradient design creates smooth color and opacity transitions from the cervical to the incisal region, mimicking the natural characteristics of human teeth without the need for manual layering or staining.
Comprehensive Shade Selection
Available in an extensive palette of shades to match virtually any clinical requirement:
- 11 Natural Shades — for lifelike, organic tooth color reproduction
- 16 Classic VITA Shades — full VITA classical A1-D4 shade guide compatibility
- 3 Bleached Shades — for patients seeking brighter, whiter restorations
Versatile Clinical Applications
The 3D Plus multilayer zirconia is suitable for a broad spectrum of dental restorations, including:
- Full-contour crowns (anterior and posterior)
- Multi-unit bridges (up to 14 units)
- Implant-supported restorations
- Inlays, onlays, and veneers
- Full-arch prostheses
Note: Not recommended for partial arch restorations.
Technical Specifications
| Parameter | Value |
| Material | Yttria-Stabilized Zirconia (3Y-TZP / 5Y-TZP) |
| Flexural Strength | 700-1050 MPa |
| Light Transmittance | 43% - 57% |
| Number of Layers | 6 Gradient Layers |
| Disc Diameter | 89mm (Amann Girrbach compatible) |
| Available Thickness | 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm |
| Sintering Temperature | 1450°C - 1550°C |
| Compatible Machines | Ceramill Matik, Ceramill Matron, Ceramill Motion 3 |
Why Choose CADBURS 3D Plus Zirconia?
- Factory-Direct Pricing — European-grade quality at competitive wholesale prices
- Precision Manufacturing — CIP (Cold Isostatic Pressing) ensures uniform density and minimal defects
- Worldwide Shipping — Fast international delivery with customs clearance support
- Quality Guarantee — ISO 13485 certified manufacturing process
- 10+ Years Experience — Trusted by dental labs in 50+ countries
Frequently Asked Questions
Is this zirconia block compatible with my Amann Girrbach machine?
Yes, this 89mm zirconia block is specifically designed for all Amann Girrbach Ceramill milling systems, including the Ceramill Matik, Ceramill Matron, and Ceramill Motion 3. It uses the standard 89mm disc format with the correct pin hole configuration.
What is the recommended sintering protocol?
We recommend sintering at 1450-1550°C with a standard sintering cycle. A speed sintering protocol is also available for faster turnaround. Detailed sintering instructions are provided with every order. Please refer to the sintering curve chart on this page.
Can I use this block for anterior restorations?
Absolutely. The 3D Plus features high translucency (up to 57%) and natural gradient layering, making it ideal for aesthetic anterior crowns and bridges. The smooth color transition from cervical to incisal delivers beautiful, natural-looking results.
How many shades are available?
The 3D Plus is available in 30 shades total: 11 natural shades, 16 classic VITA shades (A1-D4), and 3 bleached shades for whitening cases.
Do you ship internationally?
Yes, CADBURS ships worldwide via DHL, FedEx, and UPS. Most orders are dispatched within 1-2 business days and typically arrive within 5-7 business days depending on your location. We also provide customs clearance assistance.
For professional dental laboratory use only.
| Specifications | |
| Color | A1,A2,A3,A3.5,A4,B1,B2,B3,B4,C1,C2,C3,C4,D2,D3,D4,OM1,OM2,OM3 |
| Flexural Strength | 700-1050MPa(Av.) |
| Material Adaptation System | 92x75mm |
| Sintered Density | 6.07±0.03 g/cm³ |
| Sintering Temperature | 1500 °C |
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm 20mm, 22mm, 25mm |
| Translucency | 57%-43% |
| Vickers Hardness (HV10) | 1200 HV |
